Power Climber

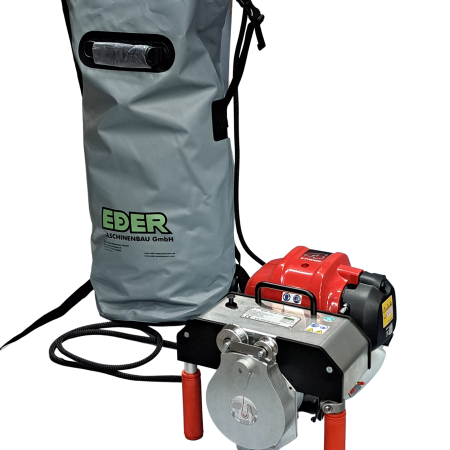

The EDER – Power Climber EPC 130- 11 are designed for the transportation of one user with equipment and, if necessary, materials on a vertical rope up to 130 kg.
The EDER – Power Climber EPC 240- 11 are designed for the transportation of one user with equipment and, if necessary, materials, as well as for the transportation of another person on a vertical rope up to 240 kg.
The EDER- Power Climber EPC 130- 11 are driven by a 2 HP 4-stroke engine and the EDER- Power Climber EPC 240- 11 by a 2,68 HP 2-stroke engine. Both engines can be conveniently restarted at working height by means of an Easy-Start starte. Thanks to an Easy-Start scriber, both engines can be conveniently started again even at working height.
NEW from February 2024:
In times of electrification, battery-powered devices are playing an increasingly important role in enabling environmentally friendly and emission-free work. Therefore, we are pleased to be able to equip the EDER – Power Climber EPC240-11 B with a STIHL battery drive based on the MSA 220 T in the future.NEW as of February 2024 This drive unit is powered by the STHIL AP 300 S battery or, for extra powerful performance, by the AP 500 S battery.

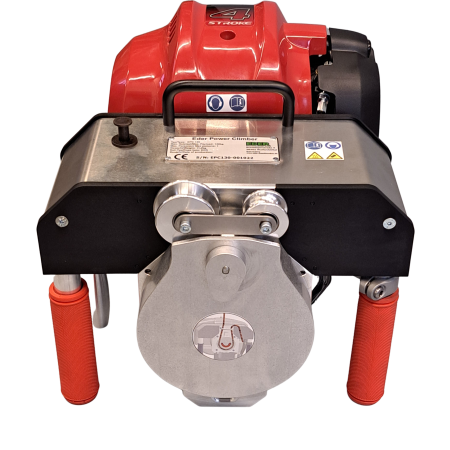

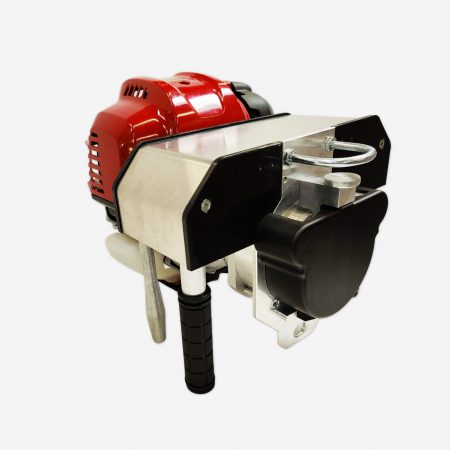

Technical Details: EPC-130-11 with 11 mm rope
Max. permissible load: 130 kg
Weight: 11.2 kg
Ascent speed: 0.5 m/s (130 kg)
Descent speed: 0.3 m/s
Rope: EDER – climbing rope 11 mm
Dimensions: 30x27x36 cm
Engine type: Honda GX50 (2 hp)
Tank volume: 0.63 l
Engine capacity: 47.9 cm³
Fuel: 4-stroke special fuel
Engine oil: SAE 10W-30 API SJ

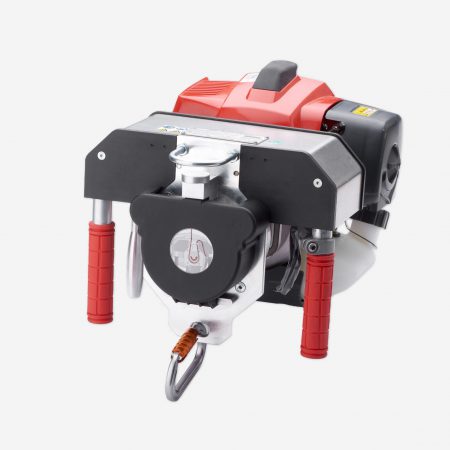

Technical Details: EPC-240-11 with 11 mm rope
Max. permissible load: 240 kg (max. 2 persons)
Weight: 11,5 kg
Ascent speed: Max. 0.4 m/s (240 kg), Max. 0,6 m/s (130 kg)
Descent speed: 0.3 m/s
Rope: EDER – climbing rope 11 mm
Dimensions: 30x28x39 cm
Engine type: Kawasaki TJ53 (2.68 hp)
Tank volume: 1.1 L
Engine capacity: 53.2 cm³
Fuel: 2-stroke special fuel
Technical Details: EDER - Power climber 240- 11 B with 11 mm rope
Max. permissible load: 240 kg (max. 2 persons)
Weight: 10,5 kg
Ascent speed: Max. 0,6 m/s (240 kg)
Descent speed: 0.3 m/s
Rope: EDER – climbing rope 11 mm
Abmessungen: 30x40x30 cm
Engine type: Battery Stihl engine
OPERATING INSTRUCTIONS
Spare part list
Select and download by article.
Accessories

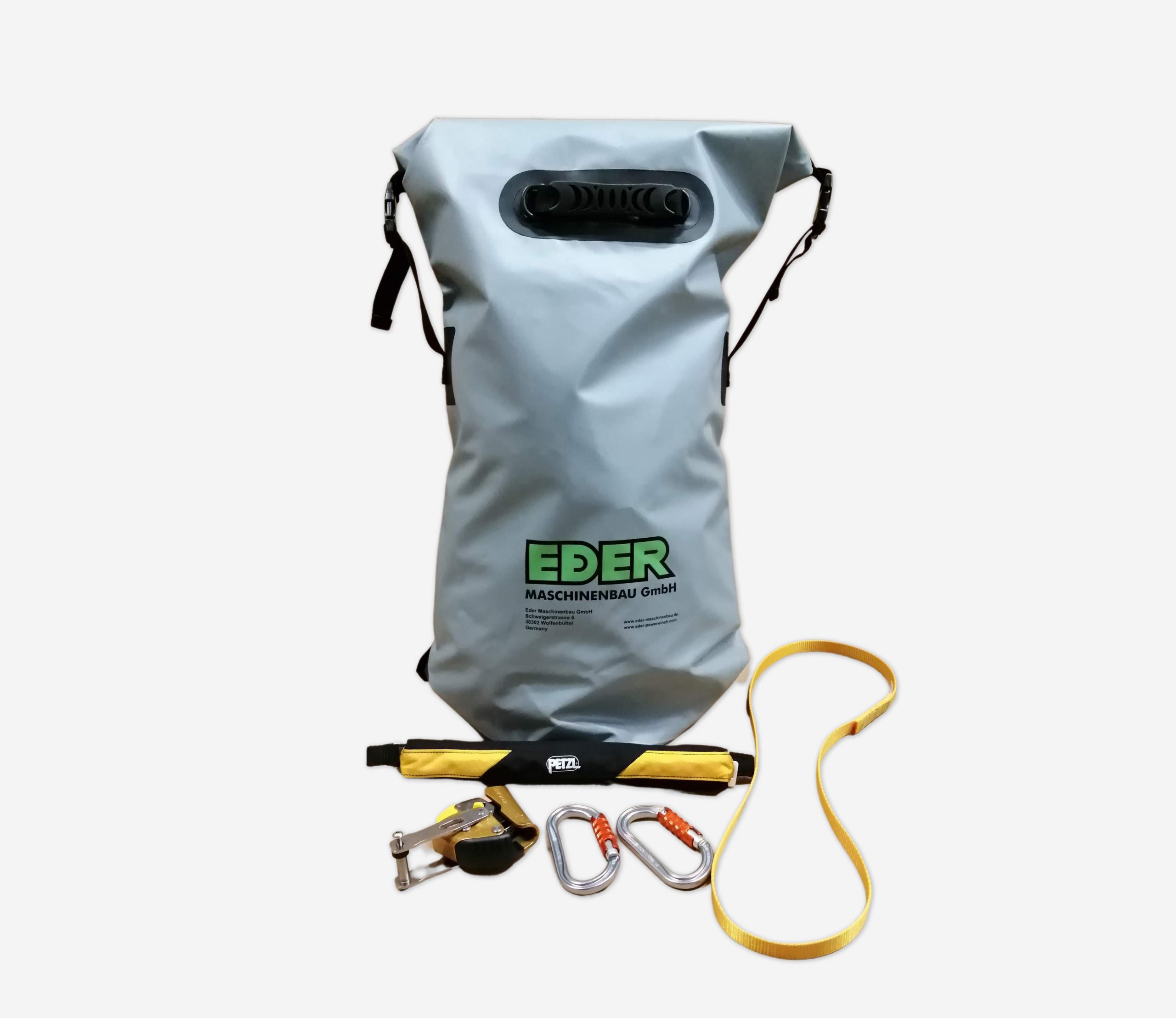

Equipment package
1x ASAP-Lock
1x tape loop
2x carabiner
1x drop damper
1x rope bag

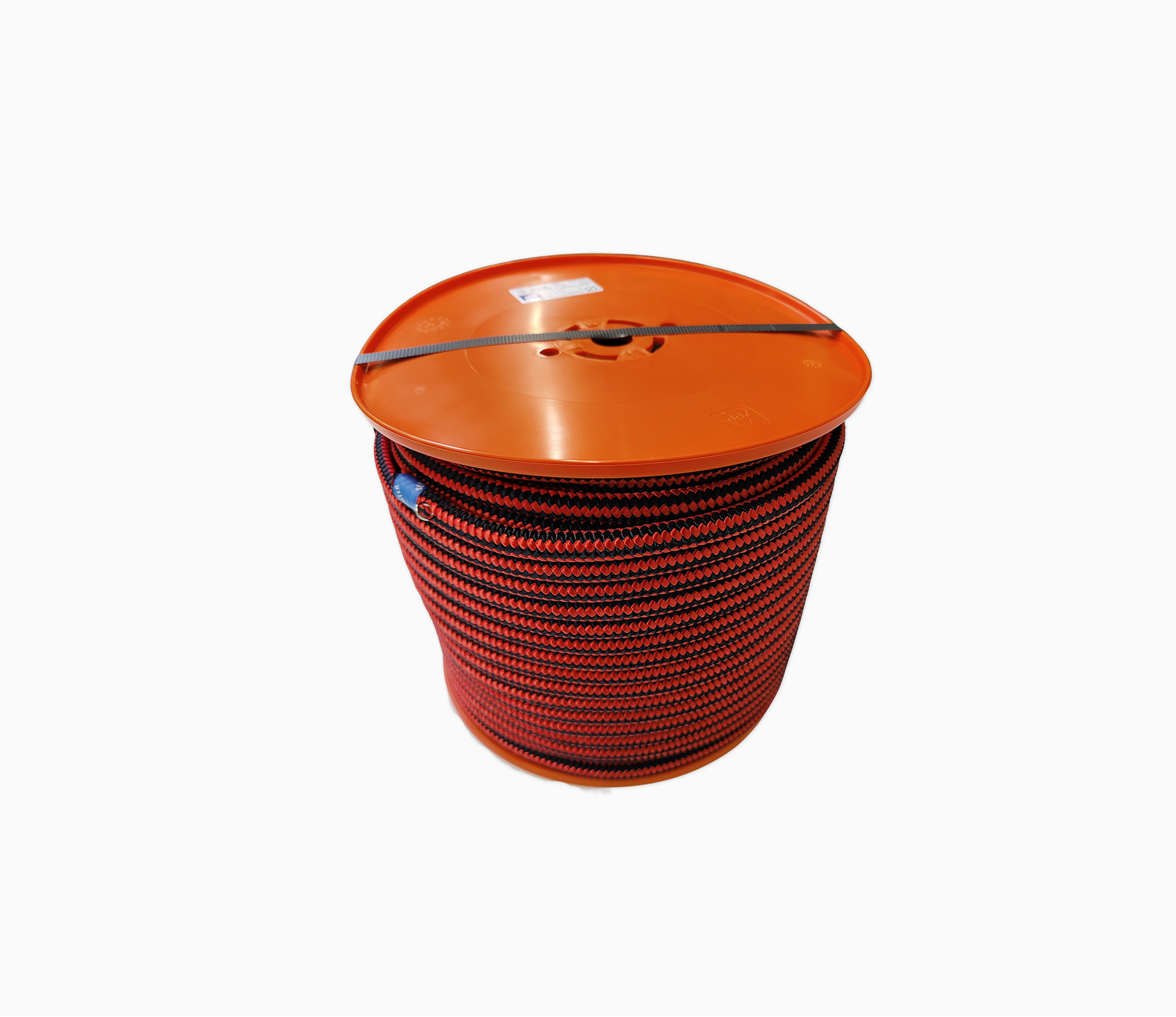

rope 100 m with rope back for the EDER- Power Climber EPC-130-11 and EPC-240- 11
breaking load 32 kN
Ø 11 mm
Frequently asked questions
The rope is included with the purchase of an EDER – Power Climber and has a diameter of 11 mm
Yes, for this we have developed two new EDER – Power Climber EPC – 130- 11 and EPC – 240- 11.
Yes, available from February 2024.
