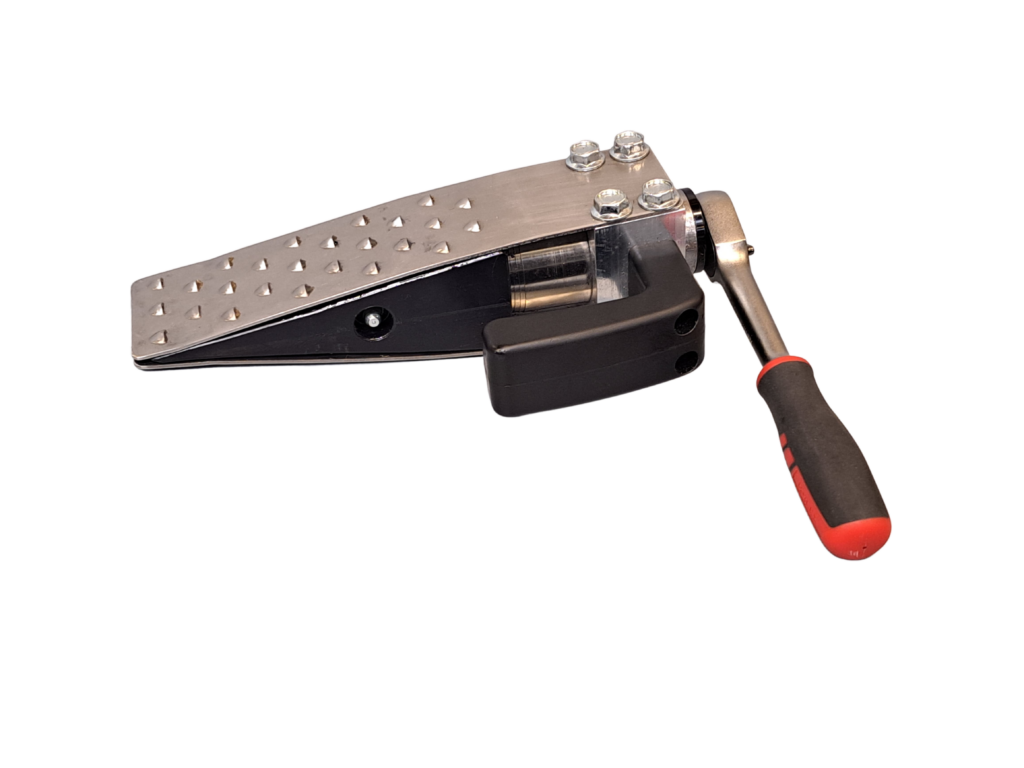

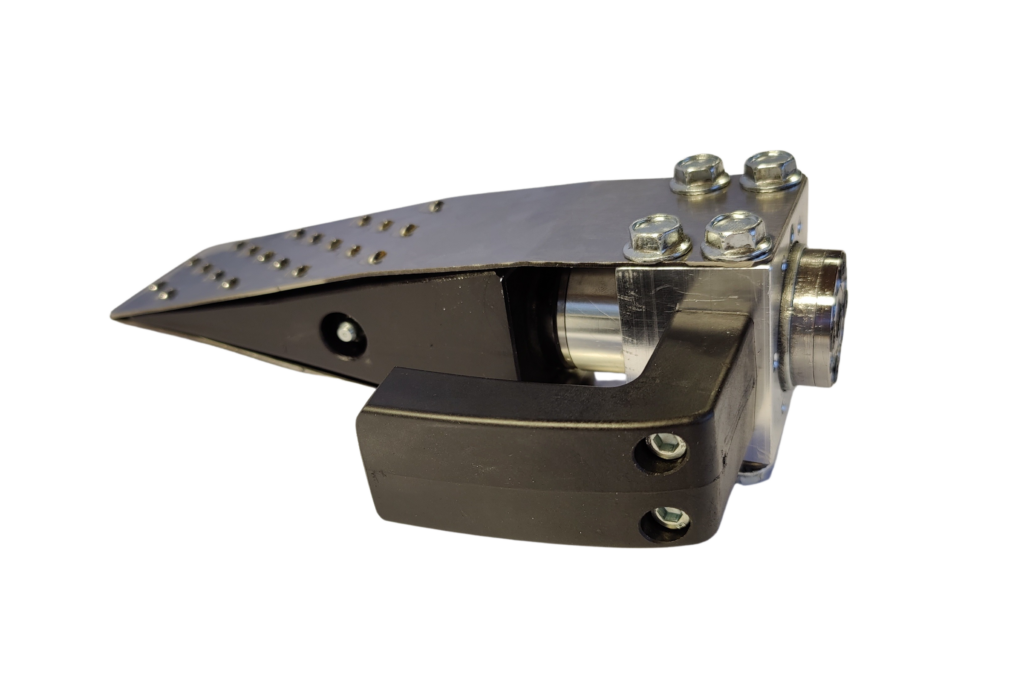

EDER - Titan 50 Small Felling Wedge
The EDER – Titan 50 is the smaller version of the proven EDER – Titan 80 Pro. It is used in light timber harvesting and is an alternative to heavy wedge work. Compared to classic wedge variants, the EDER – Titan 50 has the following advantages:
- It can be operated with a 3/8" or 1/2" impact wrench up to 750 Nm.
- Backscrewing and re-setting of the wedge is possible if the lifting height is too low .
- Power-saving and ergonomically favorable work due to high lifting forces and gear ratios.
- Increased safety when felling on slopes.
- Danger of falling deadwood is reduced by vibration-free wedging.
- Encapsulated drive spindle prevents contamination and resulting damage to the drive.
- Easy to transport on the Forstkoppel - set with the wedge bag for the Titan 50.
Technical specifications
Weight: 1,6 kg
LxBxH: 240 mm x 118 mm x 72 mm
Wedge feed: 100 mm
Stroke / revolution: 2 mm
Max. Lifting capacity: 15 t
Max. Lifting height: 50 mm
Spare part list
Select and download by article.
Note: Do not forget to grease the felling wedges!
The lifting power of your EDER felling wedge can only be achieved with sufficient lubrication. Dry extension under load can cause damage.
Therefore: Lubricate your felling wedge with a suitable grease before each felling process.
Additionally:
If the felling wedge has been exposed to moisture, it must be relubricated immediately.
Follow the instructions in the operating manual for your felling wedge.
Frequently asked questions
Yes, the EDER – Titan 50 can be operated with an impact wrench with up to 750 Nm.
The EDER – Titan 50 has a maximum lifting force of 15 t.
The device works with a 3/8 nut.
