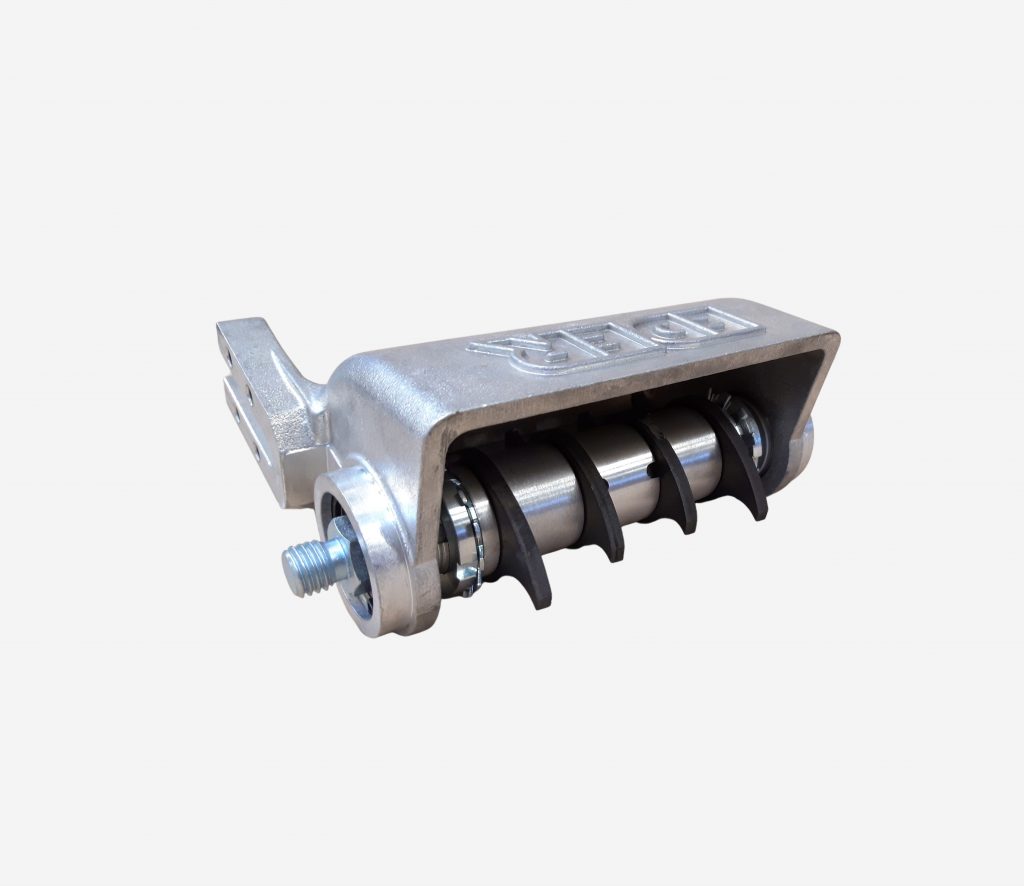

EBF-C bark beetle cutter

In spruce forests, heavy storm damage makes it necessary to prevent bark beetles as quickly as possible. For this purpose, the bark of the trunk is usually completely peeled off completely in order to destroy the bark beetle or to eliminate the conditions that constitute the bark beetle habitats. However, the peeling of the wood prevents the renaturation of the forest and is accompanied by a massive loss of biodiversity. A trade-off to full debarking is scoring the trunks. The bark beetle needs an area of about 5 cm² in order to feel at home; by scoring the log, the bark beetle is deprived of its habitat without severely restricting the renaturisation of the forest. The EDER – bark beetle cutter EBF-C has 4 knives that score the trunk at a distance of 24 mm, thus enabling rapid scoring of the entire trunk. The Eder bark beetle cutter can be attached as an attachment kit to a wide range of commercially available chainsaws.

Technical specifications

Weight: 2.7 kg
Min. drive power: 2.0 kW / 2.7 hp
Working width: 90 mm
Number of knives: 4

Notes

The attachment is possible for the following available Oregon models:
for 8mm: K041; K095; A095 & A074
for 12mm: D025 & D009

The attachments are not compatible with Chainsaws whose sprocket/ring have 3/8 LP, 3/8 Micro, 3/8 Hobby, 3/8Picco, 325 MicroLite, etc. Alternative sprockets/chainrings with 3/8″ or 325″ pitch are available from third party suppliers for some chainsaw models.

Operating instructions

Division

A 3/8″ pitch or 325″ pitch is required to attach to the chainsaws. Please specify when requesting via the form.
