Ascender
The EDER – ASCENDER EPC 130- 11 is designed for transporting one user with equipment and, if necessary, materials on a vertical rope up to 130 kg.
The EDER – ASCENDER EPC 240- 11 is designed for the transportation of one user with equipment and, if necessary, materials, as well as for the transportation of an additional person, e.g. in rescue operations, on a vertical rope weighing up to 240 kg.
The EDER – ASCENDER EPC 130- 11 is powered by a 2 hp 4-stroke engine and the EDER – ASCENDER EPC 240- 11 by a 2.68 hp 2-stroke engine. Thanks to an Easy-Start scriber, both engines can be conveniently started again even at working height.
NEW available in stores since February 2024:

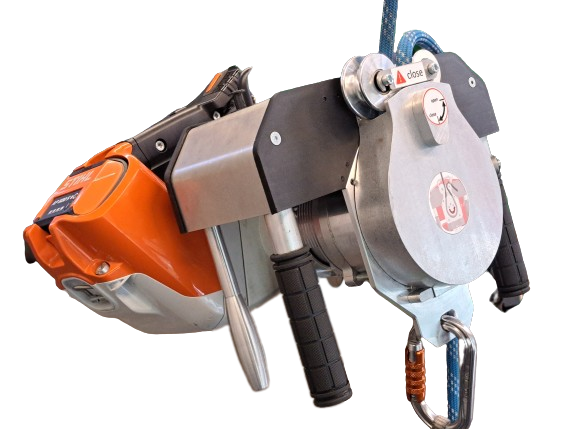

In times of electrification, battery-powered devices are playing an increasingly important role in enabling environmentally friendly and emission-free work. We are therefore pleased to be able to equip both the EDER – ASCENDER EPC240-11 B with a STIHL battery drive based on the MSA 220 T in the future. This drive unit is operated with the STHIL AP 300 S or AP 500 S battery, which means that one battery can be used for a wide range of devices.
Technical Details: EPC-130-11
Max. permissible load: 130 kg
Weight: 11.2 kg
Ascent speed: 0.5 m/s (130 kg)
Descent speed: 0.3 m/s
Rope: Teufelberger Patron Plus 11mm or BEAL Industrie 11mm
Dimensions: 30x27x36 cm
Engine type: Honda GX50 (2 hp)
Tank volume: 0.63 l
Engine capacity: 47.9 cm³
Fuel: 4-stroke special fuel
Engine oil: SAE 10W-30 API SJ
Technical Details: EPC-240-11
Max. permissible load: 240 kg (max. 2 persons)
Weight: 11,5 kg
Ascent speed: Max. 0.4 m/s (240 kg), Max. 0,6 m/s (130 kg)
Descent speed: 0.3 m/s
Rope: Teufelberger Patron Plus 11mm or BEAL Industrie 11mm
Dimensions: 30x28x39 cm
Engine type: Kawasaki TJ53 (2.68 hp)
Tank volume: 1.1 L
Engine capacity: 53.2 cm³
Fuel: 2-stroke special fuel
Technical Details: EPC-240- 11 B
Max. permissible load: 240 kg (max. 2 persons)
Weight: 10,5 kg
Ascent speed: Max. 0,6 m/s
Descent speed: 0.3 m/s
Rope: Teufelberger Patron Plus 11mm or BEAL Industrie 11mm
Dimensions: 30x40x30 cm
Battery running time: between 200 – 300 meters
Engine type: Battery Stihl engine
OPERATING INSTRUCTIONS
Spare part list
Select and download by article.
Accessories
STIHL AL 500
STIHL AL 500 quick charger suitable for STIHL 500S and 300S accu.
STIHL accu 500S
suitable for EPC- 240-11 B and EDER - Winch 1200 B
rope 100 m with rope back for the EDER- ASCENDER EPC-130-11, EPC-240- 11 and EPC-240- 11 B
Ø 11 mm rope of the Teufelberger brand
Frequently asked questions
Teufelberger Patron Plus 11 mm or BEAL Industrie 11 mm.
Yes, for this we have developed two new EDER – ASCENDER EPC – 130- 11 and EPC – 240- 11.
Yes, it has been on sale since February 2024.
