EDER - daWinchi bollard available from 01.10.205
daWinchi bollard

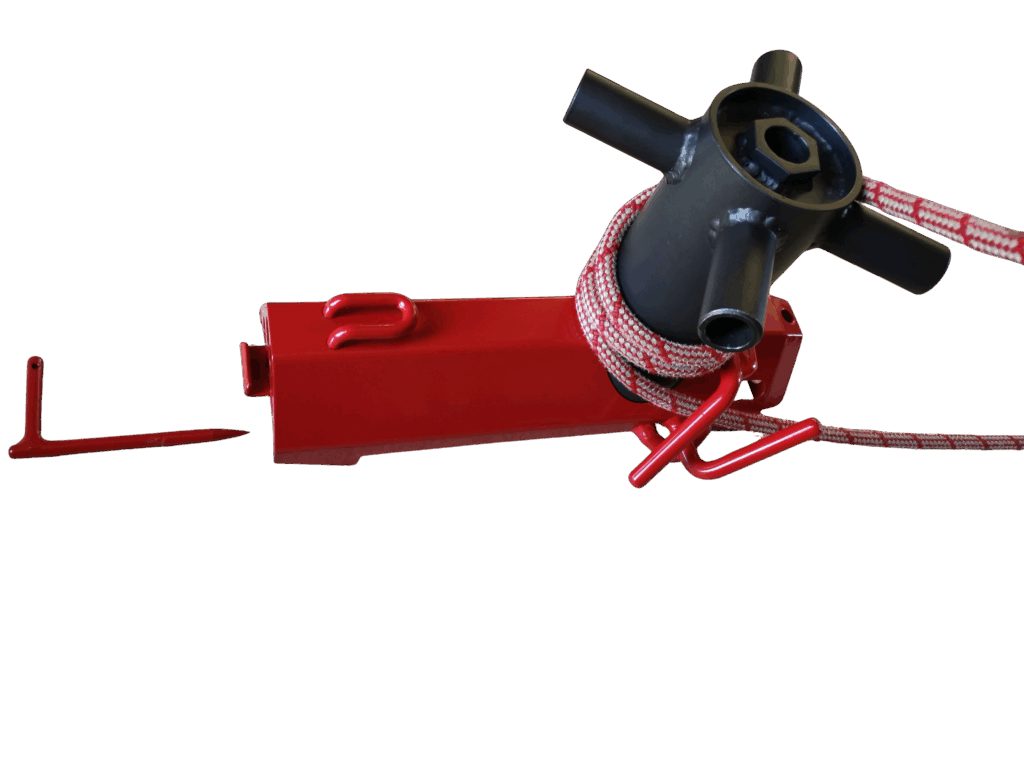

The EDER – daWinchi bollard combines the function of a winch and a conventional bollard in one device. As the central drum can be rotated in one direction, it is possible to switch between lowering and winching without having to convert the rope. The drive rod included in the scope of delivery is used to drive the drum of the winches. To position the bollard conveniently, the winch can be temporarily attached to the trunk with an integrated steel nail. It is then attached to the tree with two tensioning straps (not included).
To prevent damage to the tree, a tree guard, available as an accessory, can be used for a payload of up to 5 kN.
Working load
10 kN
Breaking load
50 kN
Weight
17 kg incl. drive rod
Engine
no motor
Power
- 500 kg pulling force in direct pull at a pulling speed of 11.5 m/min
Operation
The EDER – WINCH 500 B is controlled outside the danger zone. By pulling lightly on the rope, the throttle trigger of the control unit is moved and the winch starts to pull.
Rope brake
Maximum safety thanks to the rope brake! As soon as the operator releases the rope, the winch stops and the rope is clamped in the brake. This prevents the load from slipping back unintentionally. The brake can, however, be released on purpose.
Spare part list
Select to download.
Instructions: How to start the winches correctly
Do you have problems starting the motors of our Winches? Here we have a tutorial detailing each possible starting method. Also, a solution if your engine has already “died”!
Accessories

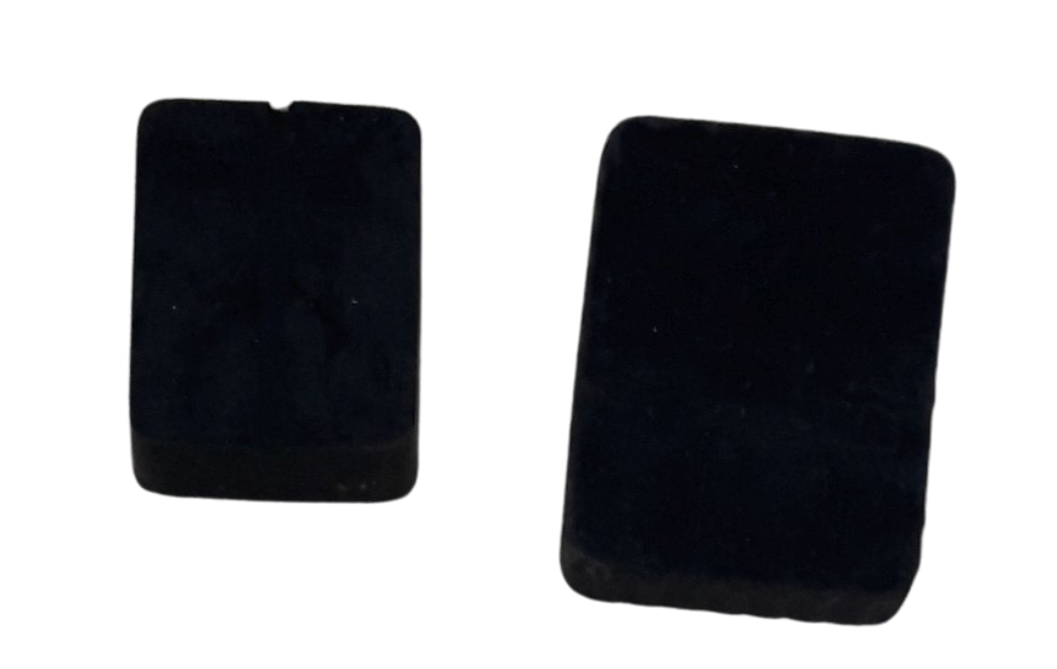

Tree protection jaws for the EDER - daWinchi bollard
two-part, in mm (upper: 40 x 100 x 120, underside: 30 x 120 x 160
EDER - Trailer coupling for EDER - WINCH 500 B
Weight: 0,36 kg Dimensions: 200x80x70 mm Max. payload: 750 kg The trailer coupling for the EDER - Winch 500 B is suitable for all conventional ball head trailer couplings. First the trailer coupling is placed over the ball head, then the Winch 500 B is attached to the trailer coupling using a plug-in bolt.
Rope with thimble for EDER - Winch 400, 500, 1200
in 50 and 100 m, breaking load 3600 daN Ø 9.5 mm
Rope bag for the ropes
capacity: 45 L
max. Load capacity: 19 kg
If you have any other questions about using our accessories, just contact us at:
- +49 (0) 5331 / 90216-0
- vertrieb@eder-maschinenbau.de
Frequently asked questions
See Accessories , the rope with the 9.5 mm diameter. Available in 50m or 100m.
Normal petrol.
Honda four-stroke engine, which can work in all positions.
