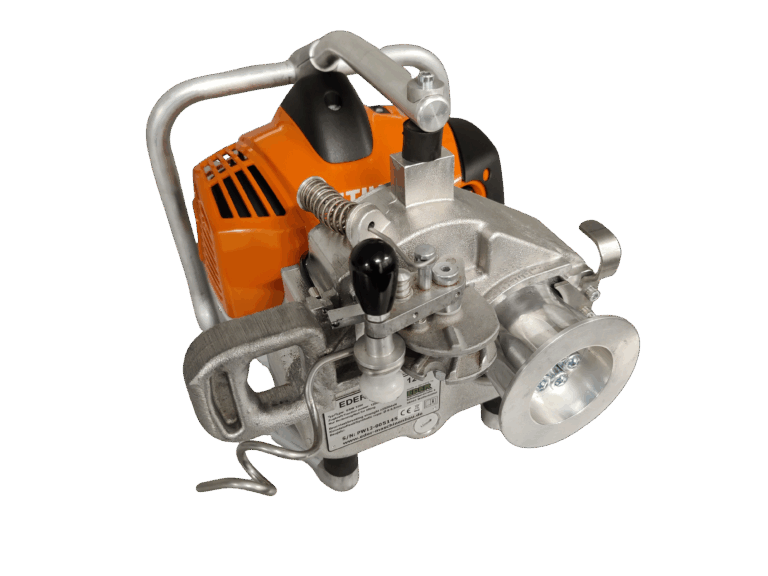

EDER - WINCH 1200 S available in stores from 01.10.2025
The Allrounder with STIHL motor
When maximum performance and absolute reliability are required, the new
EDER – WINCH 1200 S the right choice.
It offers the following state-of-the-art motor technologies:
- STIHL M-Tronic – Fully electronic engine management for optimum performance in all conditions. No more manual adjustment necessary. The winch is always ready for use.
- STIHL ErgoStart – For effortless starting with minimal effort (a light pull is enough).
- STIHL Kompensator – Constant engine performance. More efficiency, less maintenance.
The compact design and robust housing make the EDER – WINCH 1200 S the perfect companion for mobile applications. Whether it’s felling trees, skidding work or material recovery – this cable winch impresses with its power, precision and durable technology.
Capacity
1.200 kg
speed
13 m/min
Weight
13,6 kg
STIHL motor
2.8 kW powerful STIHL engine
Power
- 1.200 kg tractive force in direct pull at a pulling speed of at 13 m/min
Operation
The EDER – Winch 1200 S is controlled outside the danger zone. By pulling lightly on the rope, the throttle trigger of the control unit is moved and the winch starts to pull.
Rope brake
Maximum safety thanks to the rope brake! As soon as the operator releases the rope, the winch stops and the rope is clamped in the brake. This prevents the load from slipping back unintentionally. The brake can, however, be released on purpose.
Spare part list
Select by serial number and download.
Accessories
Rope with thimble for EDER - Winch 400, 500, 1200, 1200 B, 1200 S
in 50m ,100m and 200m, breaking load 3600 daN
Ø 9,5 mm
Rope bag for the ropes
capacity: 45 L
max. Load capacity: 19 kg
If you have any other questions about using our accessories, just contact us at:
- +49 (0) 5331 / 90216-0
- vertrieb@eder-maschinenbau.de
Frequently asked questions
Video: Starting the EDER – Powerwinches
Download instructions as PDF here
See Accessories , the rope with the 9.5 mm diameter. Available in 50m or 100m.
Special fuels, 1/50 mixture or 1/30 mixture if the oil is poor.
